What Is an AR-15 Upper Receiver? Complete Breakdown

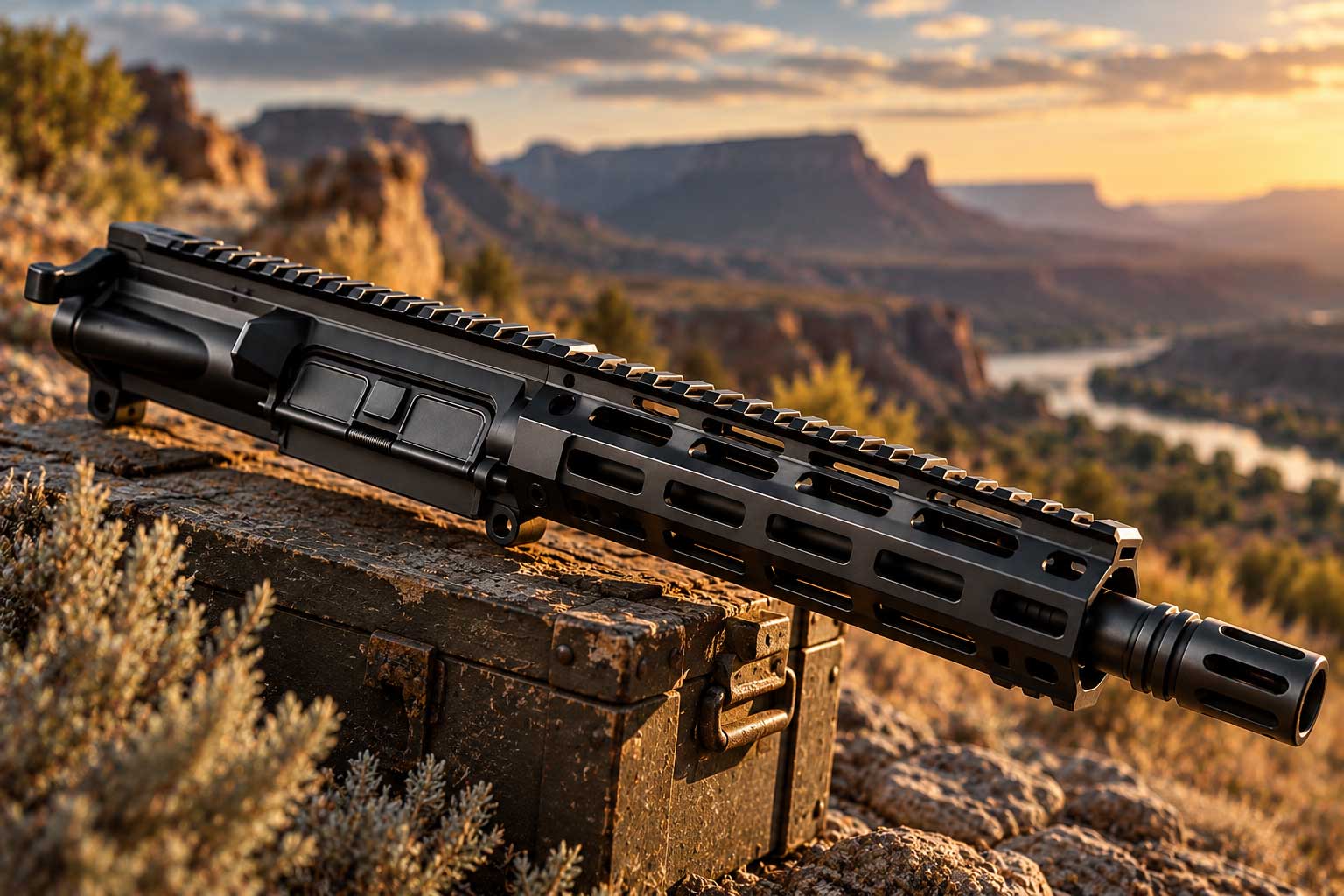

The AR-15 upper receiver is the upper portion of the rifle’s two-part receiver system. It supports the barrel, houses the bolt carrier group and charging handle, and provides the structure for several components involved in the firing and cycling process.

Although the upper receiver itself is a relatively simple housing, it plays an important role in how an AR-15 functions. It keeps major operating components properly positioned and connects the barrel assembly to the lower receiver.

Upper receivers come in different configurations, from stripped receiver housings to complete upper assemblies. Understanding these differences is useful whether you’re learning about the AR-15 platform or comparing its individual components.

What Is an Upper Receiver?

An upper receiver is the structural housing that forms the upper half of an AR-style rifle’s receiver assembly. On a typical AR-15, it attaches to the lower receiver through two pins known as the pivot pin and takedown pin.

The upper receiver contains the bolt carrier group and charging handle, while the barrel assembly attaches to its front. Other components, including the handguard and gas system, are associated with the upper assembly.

It is important to distinguish between an upper receiver and a complete upper assembly. The receiver itself is the housing. A complete upper generally includes additional components such as the barrel, handguard, and gas system.

What Does an AR-15 Upper Receiver Do?

The upper receiver serves as the foundation for several essential operating components of the AR-15.

Its primary functions include:

• Supporting the barrel: Provides the mounting interface for the barrel assembly.
• Housing the bolt carrier group: Guides the movement of the bolt carrier during the firing cycle.
• Accommodating the charging handle: Provides the channel through which the charging handle operates.
• Supporting the operating system: Provides the receiver structure through which the firearm’s gas-operated action functions.
• Connecting to the lower receiver: Joins the upper and lower portions of the rifle into a complete receiver assembly.

When an AR-15 fires, expanding gases propel the bullet through the barrel. In a conventional gas-operated AR-15, some of that gas is redirected to operate the action.

The bolt carrier group moves within the upper receiver, allowing the action to unlock, extract and eject the spent cartridge case, and return forward to chamber another round.

The upper receiver does not perform these operations independently. Instead, it houses and supports the components responsible for them.

What Parts Are Found in an AR-15 Upper Assembly?

A complete AR-15 upper assembly consists of several interconnected components. While some are housed inside the receiver, others attach to it or to the barrel assembly.

Barrel

The barrel attaches to the front of the upper receiver and provides the passage through which the bullet travels.

Its chambering, length, rifling, and construction influence ammunition compatibility, bullet velocity, and overall firearm performance.

Although the barrel is part of a complete upper assembly, it is a separate component from the upper receiver housing.

Bolt Carrier Group (BCG)

The bolt carrier group is the moving assembly housed inside the upper receiver.

It contains several components, including the bolt, carrier, firing pin, cam pin, and firing pin retaining pin.

During operation, the bolt carrier group participates in feeding, chambering, locking, firing, extraction, and ejection. Its movement is guided by the upper receiver and coordinated with the rifle’s gas and buffer systems.

Charging Handle

The charging handle is located toward the rear of the upper receiver.

It allows the shooter to manually retract the bolt carrier group. This is useful for opening the action, inspecting the chamber, and performing certain administrative handling procedures.

Charging handles are available in standard and ambidextrous designs, although their basic function remains the same.

Gas System

Most conventional AR-15 rifles use a gas-operated system to cycle the action.

The gas system typically includes a gas port in the barrel, a gas block, and a gas tube that directs propellant gas toward the bolt carrier group.

Some AR-pattern rifles use piston-operated systems instead. Although their operating mechanisms differ, the upper receiver remains the housing for the action’s principal moving components.

Handguard

The handguard surrounds a portion of the barrel and provides a gripping surface while helping separate the shooter’s support hand from barrel heat.

Modern handguards often incorporate mounting interfaces such as M-LOK or Picatinny rails for compatible accessories.

The handguard is generally attached through a barrel nut or another mounting system rather than being an integral part of the receiver housing.

Forward Assist

Some AR-15 upper receivers include a forward assist, a mechanism located on the side of the receiver that can apply forward pressure to the bolt carrier.

Other upper receiver designs omit this feature entirely.

The presence or absence of a forward assist is one of several design differences found among modern upper receivers.

Ejection Port and Dust Cover

The ejection port is an opening on the side of the upper receiver through which spent cartridge cases are expelled.

Many upper receivers include a hinged dust cover that helps protect the opening from dirt and debris when the firearm is not in use.

Some specialized receiver designs use different ejection arrangements or omit a conventional dust cover.

What Are the Different Types of AR-15 Upper Receivers?

The term “upper receiver” is often used to describe several different products. The most common distinctions are stripped uppers, barreled uppers, and complete upper assemblies.

Stripped Upper Receiver

A stripped upper receiver is the receiver housing without the barrel, bolt carrier group, charging handle, or other major components installed.

Depending on the manufacturer, it may also lack smaller parts such as the forward assist and ejection port cover.

A stripped upper provides the basic receiver structure without the additional components of an assembled upper.

Barreled Upper Assembly

A barreled upper assembly includes the receiver housing and an installed barrel, usually along with the associated barrel mounting hardware.

Depending on how the manufacturer defines the product, it may also include a handguard, gas system, or muzzle device.

The term is not completely standardized, so the included components can vary.

Complete Upper Receiver Assembly

A complete upper assembly generally includes the upper receiver, barrel, handguard, and gas system.

Some manufacturers also include the bolt carrier group and charging handle, while others sell those components separately.

For that reason, “complete upper” does not always mean every upper-related component is included. The manufacturer’s product description determines exactly what comes with the assembly.

What Is the Difference Between an Upper and Lower Receiver?

The AR-15 uses two primary receiver sections: the upper receiver and the lower receiver. Although they connect to form the firearm’s receiver assembly, they serve different purposes.

Upper Receiver

The upper receiver supports the barrel assembly and houses the bolt carrier group and charging handle. It provides the structure for the components involved in chambering, locking, extraction, and ejection.

Lower Receiver

The lower receiver houses the fire control group and several of the firearm’s operating controls.

These typically include the trigger, hammer, safety selector, magazine release, and bolt catch. The lower receiver also provides mounting interfaces for the pistol grip and receiver extension associated with the buffer system.

In simple terms, the upper receiver houses much of the rifle’s firing and cycling mechanism, while the lower receiver contains the fire control components and several user-operated controls.

What Materials Are AR-15 Upper Receivers Made From?

Most conventional AR-15 upper receivers are manufactured from aluminum alloys, although alternative materials and manufacturing methods are also available.

7075-T6 Aluminum

7075-T6 aluminum is commonly used in forged AR-15 upper receivers.

It offers a combination of strength, relatively low weight, and suitability for precision machining. The T6 designation refers to a heat-treatment condition used to develop the alloy’s mechanical properties.

Many military-pattern and commercial upper receivers use this material.

6061 Aluminum

6061 aluminum is another alloy used in certain firearm components and receiver designs.

It is generally easier to machine and has different strength characteristics than 7075 aluminum. Its suitability depends on the receiver’s design and manufacturing requirements.

Alternative Materials

Some specialized upper receivers use steel, polymer, or other materials.

These designs may differ significantly from conventional forged aluminum receivers in weight, construction, and intended application.

Forged vs. Billet Upper Receivers

AR-15 upper receivers are commonly described as forged or billet, referring to how the receiver begins its manufacturing process.

Forged Upper Receivers

A forged receiver begins as aluminum shaped under pressure before undergoing machining to produce its final dimensions.

Forged receivers are widely used in conventional AR-15 designs and are often associated with standardized external dimensions.

Billet Upper Receivers

A billet receiver is machined from a solid block of material.

This manufacturing approach allows greater flexibility in external shapes and styling. Billet receivers may incorporate distinctive contours or features that differ from traditional forged designs.

Neither manufacturing method automatically guarantees superior accuracy or reliability. Material quality, machining tolerances, design, and quality control remain important.

What Is a Flat-Top Upper Receiver?

A flat-top upper receiver features a relatively flat upper surface, typically with an integrated Picatinny rail for mounting compatible sights and optics.

This design is common on modern AR-15 rifles.

Earlier AR-15 and M16 configurations frequently used fixed carry-handle upper receivers with integrated rear sights.

Flat-top designs provide a different mounting arrangement and greater flexibility for many modern optic configurations.

The terms A3 and A4 are sometimes used in connection with flat-top upper receivers, although commercial naming conventions are not always consistent.

How Does an Upper Receiver Affect AR-15 Performance?

The upper receiver is an important structural component, but its influence on firearm performance should be distinguished from that of the complete upper assembly.

The receiver housing provides alignment and support for the barrel and moving components. Its dimensions, rigidity, and manufacturing quality can influence how consistently those parts function together.

However, many characteristics commonly attributed to an upper receiver are actually determined by components attached to it.

• Accuracy: Influenced by barrel quality, ammunition, component alignment, and other factors.
• Weight: Determined by the receiver and the combined weight of the barrel, handguard, and other components.
• Reliability: Influenced by the bolt carrier group, gas system, ammunition, and manufacturing quality.
• Handling: Affected by the upper assembly’s length, balance, and weight distribution.
• Optics compatibility: Influenced by the receiver’s mounting interface and the available rail arrangement.

A high-quality upper receiver provides a consistent foundation for these components, but the receiver alone does not determine the performance of the entire rifle.

Are All AR-15 Upper Receivers Interchangeable?

Not all upper receivers are interchangeable, even though the AR-15 platform uses many commonly shared dimensions.

Many conventional AR-15 upper and lower receivers are designed around compatible interface dimensions. However, differences in receiver design, manufacturer specifications, caliber families, and proprietary components can affect compatibility.

AR-15 and AR-10-pattern receivers are not generally interchangeable. AR-10-pattern firearms also have greater variation in receiver dimensions between manufacturers.

Compatibility should be confirmed using the specifications of the components involved rather than assuming that all AR-pattern parts share the same dimensions.

Is an AR-15 Upper Receiver Considered a Firearm?

Under the general federal regulatory framework in the United States, the lower receiver of a conventional AR-15 is typically the component classified as the firearm receiver for serialization and federal transfer requirements.

A conventional, separate AR-15 upper receiver is generally not treated as the serialized firearm receiver under that framework.

However, federal classifications depend on the specific design and applicable regulations. State and local laws may also impose additional restrictions on firearm components, sales, or transfers.

It is therefore important not to assume that every upper receiver or upper assembly is subject to identical legal requirements in every jurisdiction.

What Is the Difference Between a Stripped and Complete Upper?

The primary difference is the number of components included.

A stripped upper consists of the receiver housing itself, sometimes with a few small components already installed.

A complete upper includes the receiver and most of the major components associated with the upper assembly.

Stripped receivers offer flexibility in component selection, while complete upper assemblies reduce the number of individual parts that must be sourced separately.

Neither option is inherently better. The distinction is primarily about what is included and how the assembly is supplied.

Frequently Asked Questions About AR-15 Upper Receivers

What Is an AR-15 Upper Receiver?

An AR-15 upper receiver is the structural housing that supports the barrel assembly and contains the bolt carrier group and charging handle. It attaches to the lower receiver to form the rifle’s two-part receiver system.

Is an Upper Receiver the Same as a Barrel?

No. The barrel is a separate component attached to the upper receiver. The upper receiver is the housing that supports the barrel and contains other operating components.

Is It Illegal to Buy an AR-15 Upper Receiver?

A conventional AR-15 upper receiver is generally lawful to purchase under federal law, but restrictions can depend on the buyer, jurisdiction, product configuration, and applicable state or local regulations.

Can You Buy an Upper Receiver Without an FFL?

A conventional, separate AR-15 upper receiver generally does not require a federal firearm dealer transfer solely because it is an upper receiver. However, applicable state and local restrictions, product classifications, and seller policies must also be considered.

Is an Upper Receiver a Firearm?

For a conventional AR-15, the separate upper receiver is generally not the component federally classified as the firearm receiver. The lower receiver is typically the regulated receiver. Specific designs and applicable laws can change that analysis.

Is an Upper or Lower Receiver More Important?

Both are essential parts of the AR-15 platform. The upper receiver supports the barrel and operating components, while the lower receiver contains the fire control group and major controls. They perform different functions and work together as a system.

Can You Change Upper Receivers on an AR-15?

The AR-15 platform’s two-part receiver design allows compatible upper assemblies to be exchanged. However, compatibility, ammunition specifications, firearm configuration, and applicable laws must be considered.

What Is a Complete AR-15 Upper?

A complete AR-15 upper is an assembled upper receiver unit that generally includes the barrel, handguard, and gas system. Some complete uppers also include the bolt carrier group and charging handle, while others do not.

What Is a Stripped Upper Receiver?

A stripped upper receiver is the receiver housing without the major attached and internal components. It serves as the structural foundation of an upper assembly.

Are AR-15 and AR-10 Upper Receivers the Same?

No. AR-15 and AR-10-pattern rifles generally use different receiver dimensions and component specifications. Upper receivers designed for one platform family should not be assumed compatible with the other.

Final Thoughts

The AR-15 upper receiver is the structural foundation of the rifle’s upper assembly. It supports the barrel, houses the bolt carrier group and charging handle, and connects to the lower receiver to form the complete receiver system.

Understanding the difference between the receiver housing and a complete upper assembly helps clarify how AR-15 components fit together.

Whether examining a stripped receiver, a barreled assembly, or a complete upper, the most important distinction is what the product includes and how its components relate to the overall firearm.

For anyone learning the AR-15 platform, the upper receiver is a logical starting point for understanding the relationship between the barrel, bolt carrier group, gas system, and lower receiver.
